Polynomial Regression.

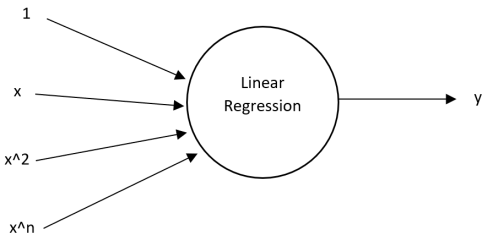

In order to create a polynomial model; we need to generate polynomial features in the form of [1,x,x^2,…,x^n]. These augmented features will be the input to the classifier. They represent a polynomial basis; hence any polynomial can be rewritten as a combination of the the basis. You can choose any basis for the input features as you might see fit. However in this case we will stick to a simple polynomial basis.
To generate the polynomial features we will use our fit_poly() and evaluate_poly functions. The weights can be simply set to [1] and the powers will represent the order of the polynomial basis. For example if a=[1,1,1,1] and k=[0,1,2,3] the result of poly_features (refer to the code) will be [1 , x , x^2, x^3] for each sample of our input.
The shape of poly_features would be (n,m) | n=samples , m= features. which satisfies sklearn .fit input shape requirements.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import numpy as np | |
| from sklearn.linear_model import LinearRegression | |
| import matplotlib.pyplot as plt | |
| from sklearn.model_selection import train_test_split | |
| def fit_poly(a,k): | |
| '''returns a function of the dot product (A=V.a) ''' | |
| A=lambda x,a=a,k=k:[[a*n**k for a,k in zip(a,k)] for n in x] | |
| return A | |
| def evaluate_poly(x,A): | |
| ''' evaluates A=V.a,stores it in matrix form, and | |
| returns a list y(x)=[A0,..An]''' | |
| A=A | |
| y=[sum(i) for i in A(x)] | |
| return y,A(x) | |
| # loading data | |
| x_raw,y_raw=np.loadtxt('data.csv',delimiter=',') | |
| # generate polynomial features | |
| degree=3 | |
| poly_features=fit_poly([1]*(degree+1),list(range(0,degree+1))) | |
| _,x=evaluate_poly(x_raw,poly_features) | |
| # reshape the data | |
| x=np.array(x) | |
| y=y_raw.reshape(–1,1) | |
| # split the model into test/train sets | |
| x_train,x_test,y_train,y_test=train_test_split(x,y,test_size=.3, | |
| random_state=1337, | |
| shuffle=True) | |
| # fit the linear model | |
| model=LinearRegression() | |
| model.fit(x_train,y_train) | |
| # get the R2 score | |
| R2=model.score(x_test,y_test) | |
| print ('The R2 score is {0:.3f}'.format (R2)) | |
| #get model parameters | |
| coef=model.coef_.T | |
| print (', '.join('a{0}={1:.2f}'.format(i,*a) for i,a in enumerate(coef))) | |
| # get the model predictions & | |
| # visualize the model | |
| predictions=model.predict(x) | |
| fig1=plt.figure('Linear Regression') | |
| plt.plot(x_raw,predictions,color='b',label='Polynomial model | R2={0:.2f}'.format(R2)) | |
| plt.scatter(x_raw,y_raw,color='r',marker='.',label='Input data') | |
| plt.xlabel('x') | |
| plt.ylabel('f(x)') | |
| plt.grid() | |
| plt.legend() | |
| plt.title('Polynomial Regression Using sklearn') |
As you can see the model fits the data pretty well (R2=0.90). The result of the regression yielded the following coefficients :
These fairly match our original model. However this approach is incorrect because we had prior knowledge of the models true parameters (polynomial degree). This raises the question of how can we make the appropriate choice for the polynomial order. In the next section we will talk about cross-validation and how taking the polynomial degree as a hyper parameter can help in solving this issue.
