Fit a linear regressor and evaluate the R2 score.
In this section sklearn is utilized to do linear regression, the data is reshaped into
[n_samples, n_features], in this case the n_samples=len(x_raw) and the n_features=1 (This is required by the sklearn .fit method). Then, we split the data into a train and test set. Finally we fit the model on the training data and test the R2 score on the testing data. The python implementation is quite simple.
| import numpy as np | |
| from sklearn.linear_model import LinearRegression | |
| import matplotlib.pyplot as plt | |
| from sklearn.model_selection import train_test_split | |
| # loading data | |
| x_raw,y_raw=np.loadtxt('data.csv',delimiter=',') | |
| # reshape the data | |
| x=x_raw.reshape(-1,1) | |
| y=y_raw.reshape(-1,1) | |
| # split the model into test/train sets | |
| x_train,x_test,y_train,y_test=train_test_split(x,y,test_size=.3, | |
| random_state=1337, | |
| shuffle=True) | |
| # fit the linear model | |
| model=LinearRegression() | |
| model.fit(x_train,y_train) | |
| # get the R2 score | |
| R2=model.score(x_test,y_test) | |
| print ('The R2 score is {0:.2f}'.format (R2)) | |
| #get model parameters | |
| coef=model.intercept_,*model.coef_ | |
| print (', '.join('a{0}={1:.2f}'.format(i,*a) for i,a in enumerate(coef))) | |
| # get the model predictions & | |
| # visualize the model | |
| predictions=model.predict(x) | |
| fig1=plt.figure('Linear Regression') | |
| plt.plot(x,predictions,color='b',label='Linear model | R2={0:.2f}'.format(R2)) | |
| plt.scatter(x_raw,y_raw,color='r',marker='.',label='Input data') | |
| plt.xlabel('x') | |
| plt.ylabel('f(x)') | |
| plt.grid() | |
| plt.legend() | |
| plt.title('Linear Regression Using sklearn') |

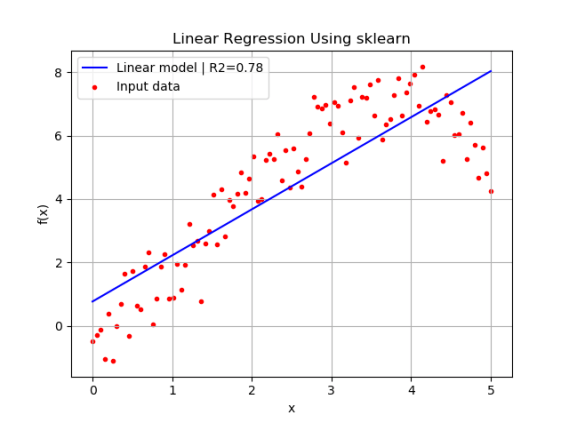

As you may predicted, the result is less than satisfactory, the R2 score is (0.78). The next obvious step is to use a polynomial with a higher degree to model the non-linearity at the right end of the data,hence let us move on to polynomial regression.
